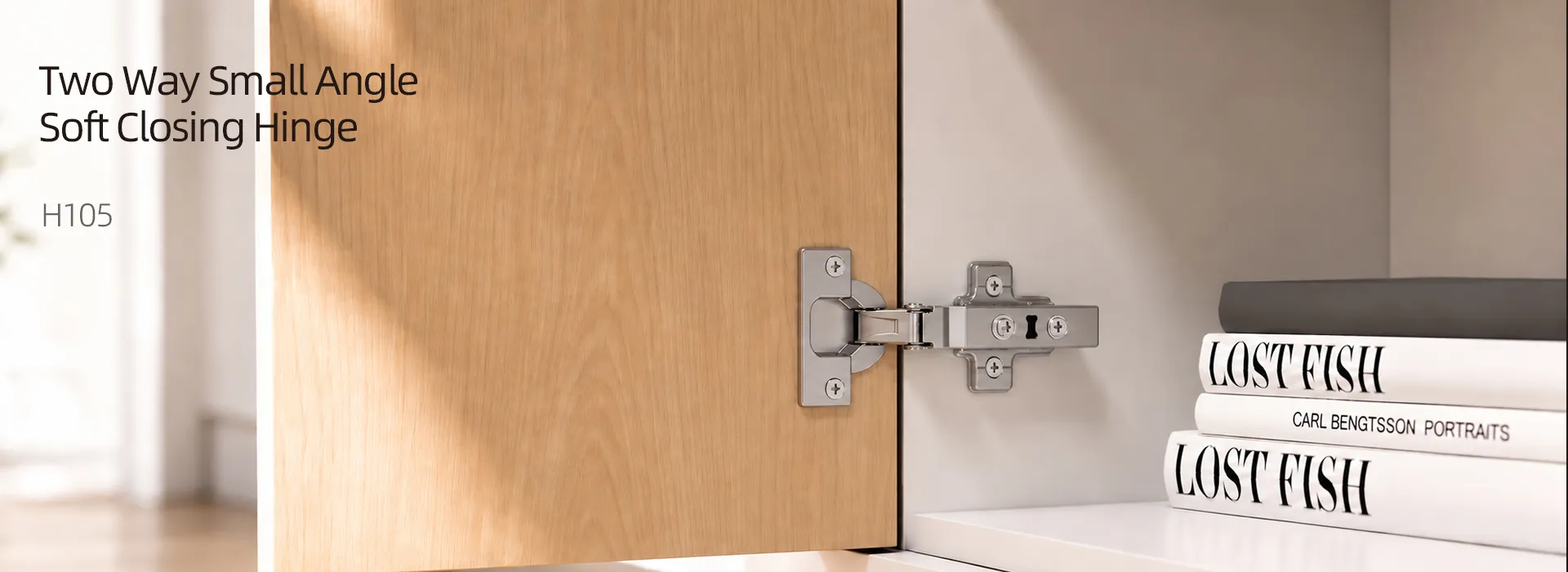

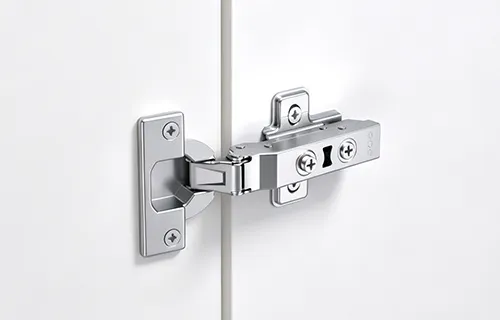

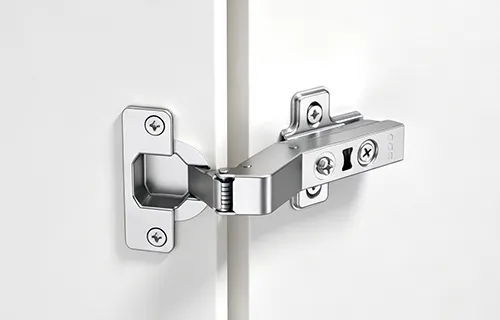

H105 Two Way Clip On Small Angle Soft Closing Hinge

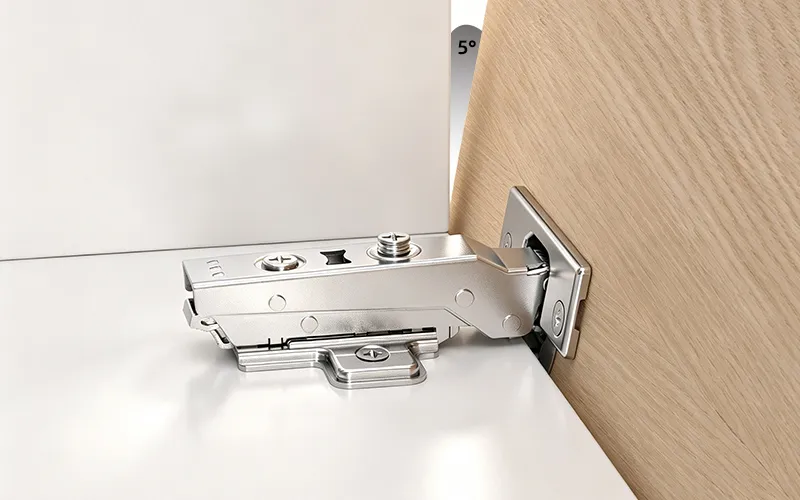

5°SMALL ANGLE SOFT CLOSING

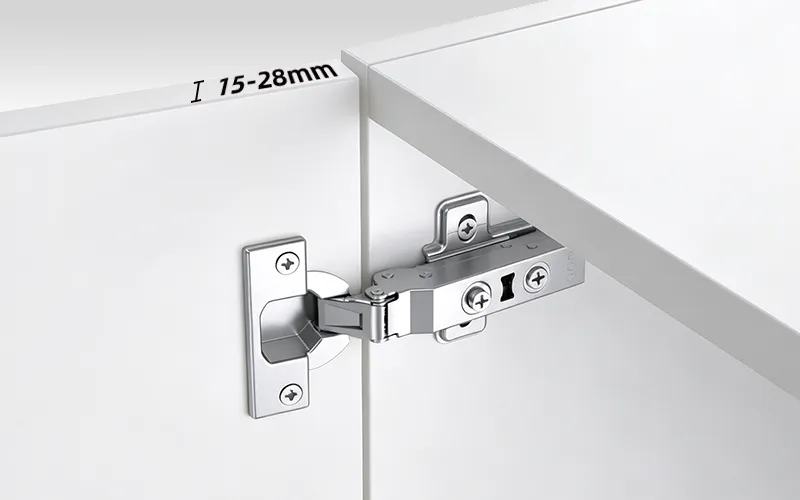

Apply to 15-28mm door thickness

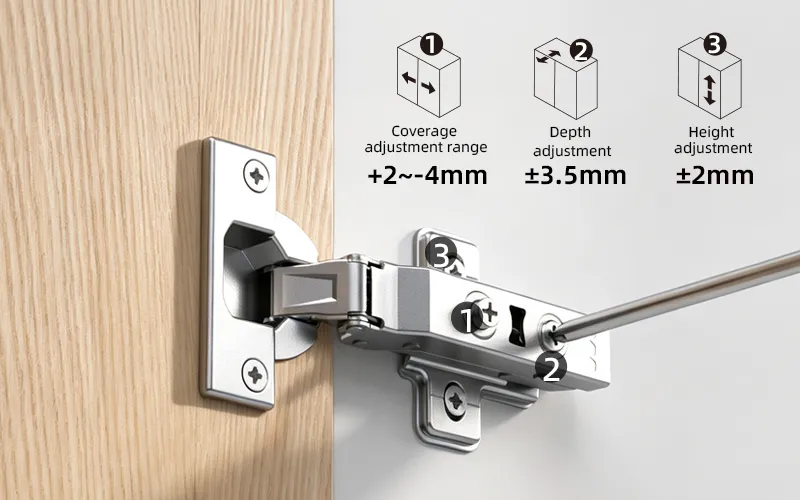

3D Adjustment

Product Family

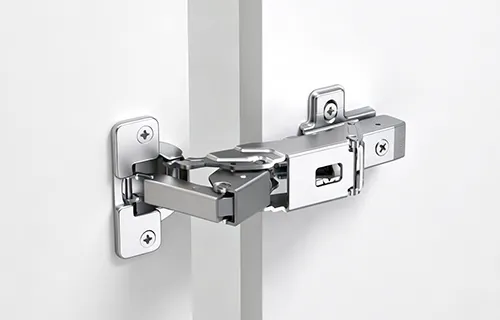

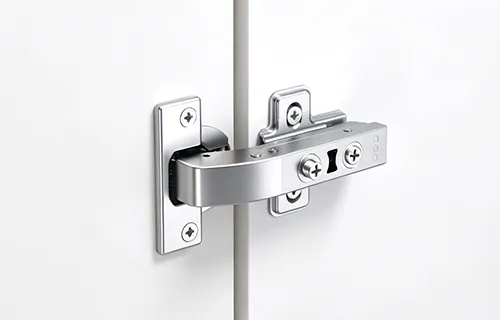

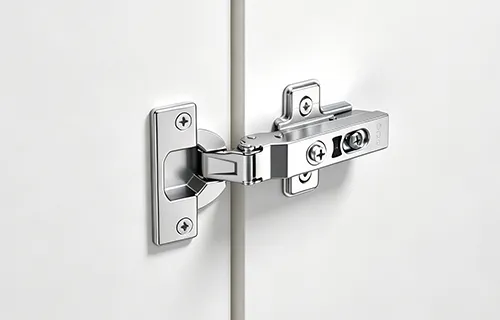

H105P TWO WAY CLIP ON SMALL ANGLESOFT CLOSING HINGE

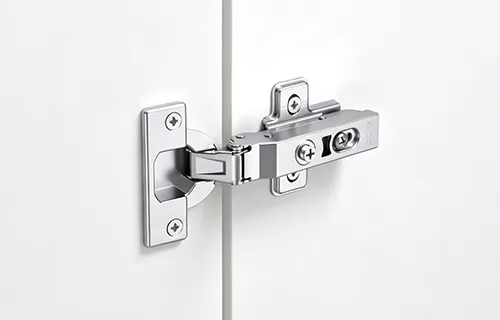

H105S TWO WAY CLIP ON SMALL ANGLESOFT CLOSING HINGE

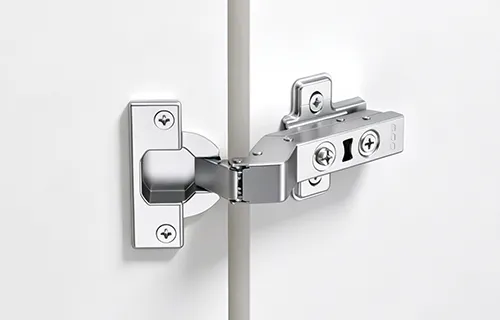

H105G TWO WAY INTEGRATED SMALL ANGLE SOFT CLOSING HINGE
H105PD CLIP ON SOFT CLOSING ANGLE HINGE
H105PE CLIP ON SOFT CLOSING ANGLE HINGE
H105PF CLIP ON SOFT CLOSING ANGLE HINGE
H105PT TWO WAY CLIP ON SMALL ANGLE SOFT CLOSING HINGE

Product Accessories

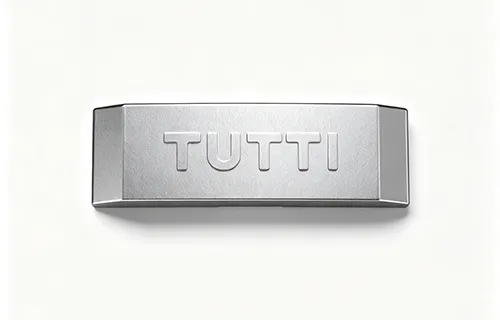

Hinge cup decorative cover

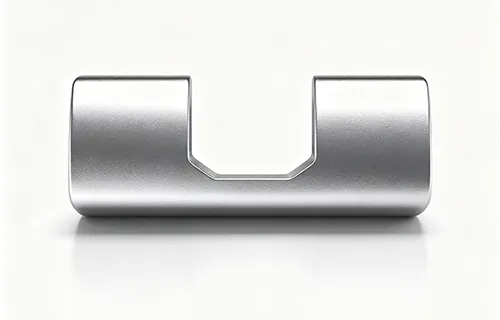

Hinge arm decorative cover

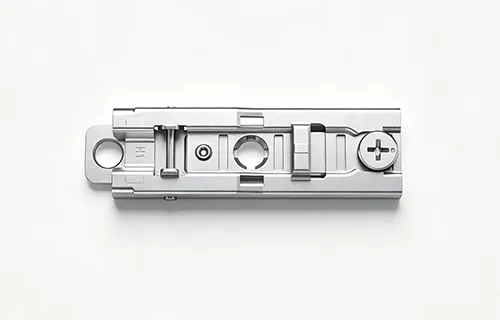

Straight plate D88H1

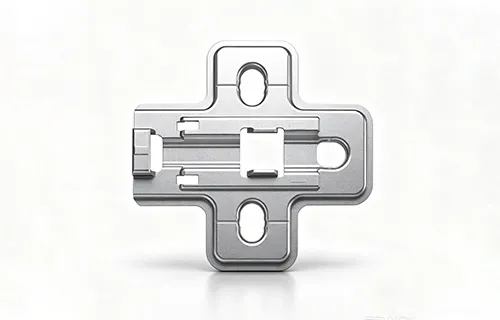

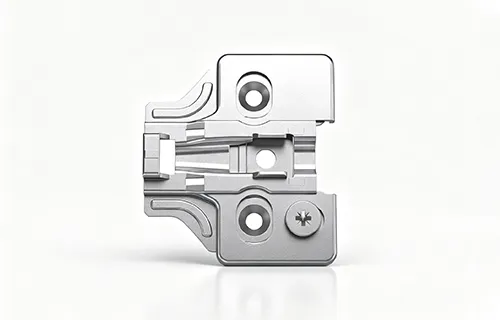

Mounting plate for clip on soft closing hinge D60H0CC0000

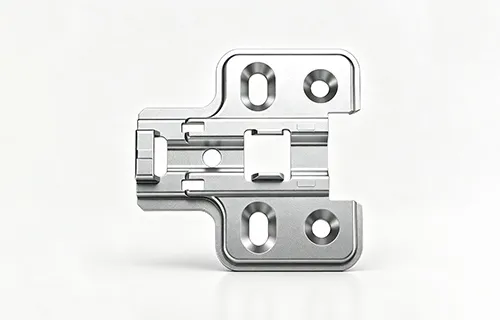

Mounting plate for clip on soft closing hinge D46H2BC0000
Mounting plate for clip on soft closing hinge D46H2SC0000

Product Specifications

Opening degree100°
Diameter of hinge cupφ35mm
Height of hinge cup12mm

Cup hole distance

45mm/48mm/52mm

Dimension of door

3-7mm
Range for door thickness15-28mm
