S50 Dream Box

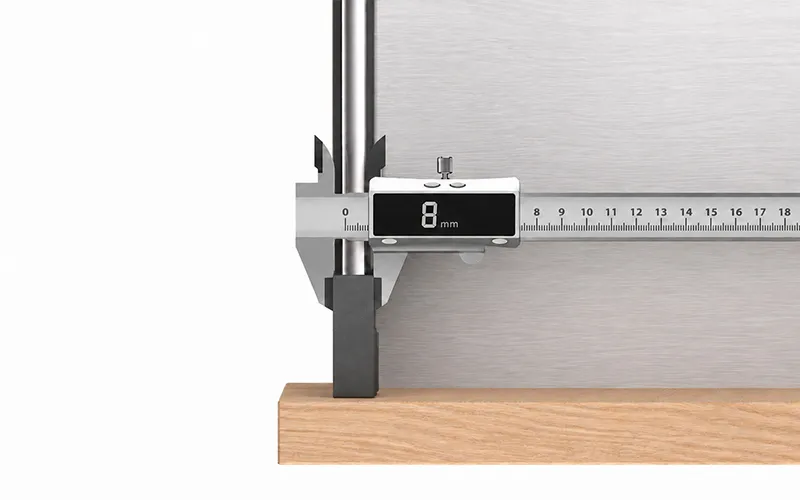

Super Slim Side Panel

Sleek design, expand the drawer capacity.

4D Adjustment

Innovative big tilt adjustment rangefrom-1.5~+4mm.

LED Lighting system(insert design)

Transparent side panel with LED light, brighten up your drawer sight.

Product Family

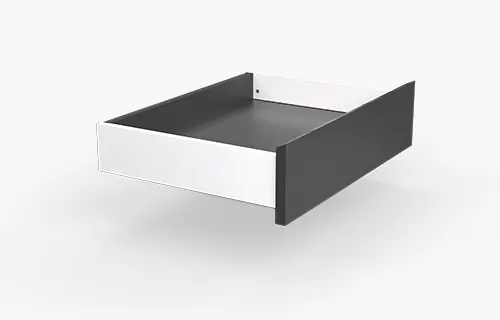

S50A Metal Box

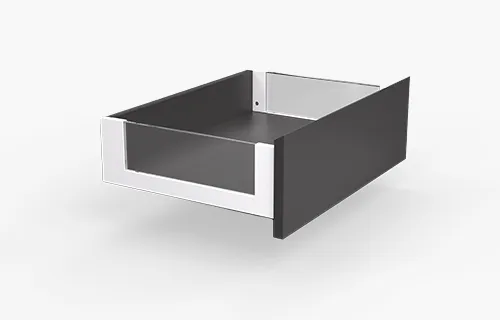

S50B Glass Box

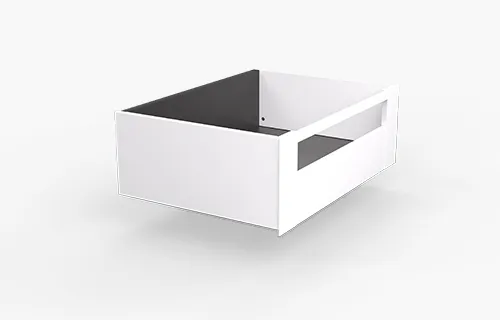

S50N Inner Drawer With Square Rail

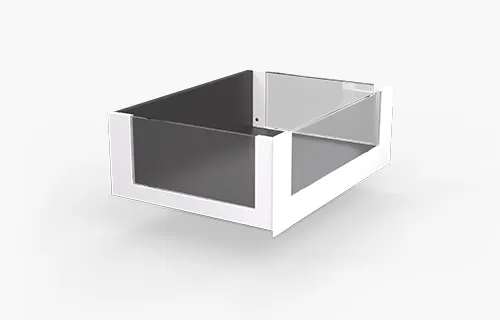

S50G Inner Drawer With Glass Front Panel

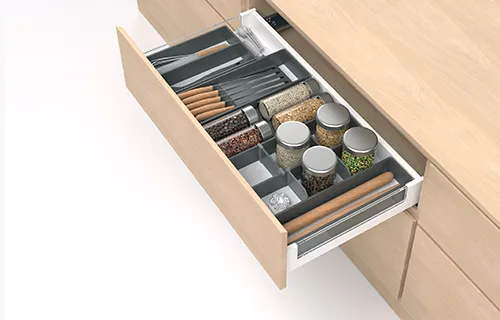

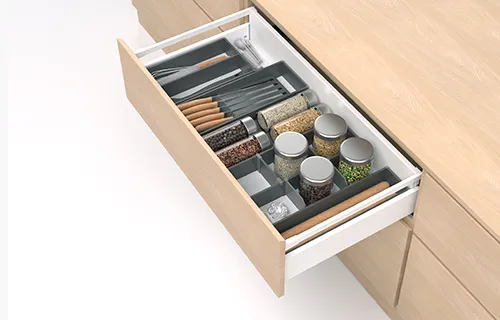

Complete Drawer Organization

S50A With Dividers
S50B With Dividers

Product Specifications

ProductS50B Metal Dream BoxS50B Glass Dream BoxS50 Inner Dream Box
Load capacity

35 kg

35 kg


Length250–600 mm250–600 mm
Drawer side heights

low: 95.5 mm

medium:133.5 mm

high 180.5: mm

low: 94 mm

medium: 132 mm

high: 179 mm

NL/ GL600: 95.5mm

NM/ GM600: 133.5mm

NH/ GH600: 180.5mm

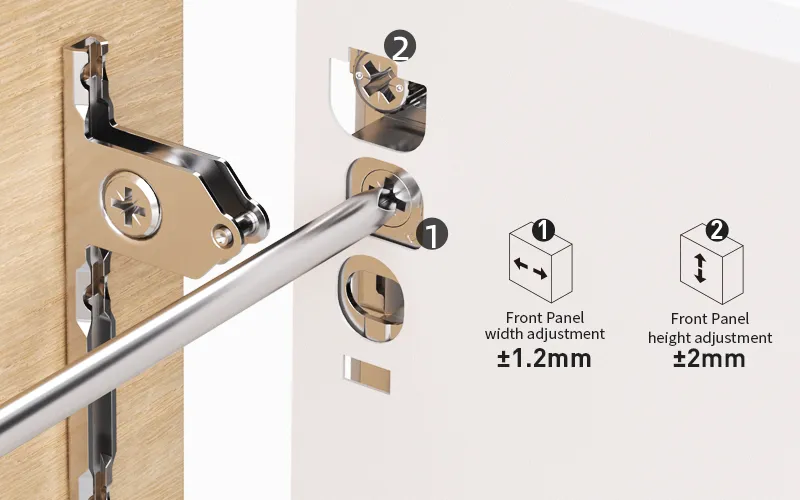

Panel lateral adjustment±1.2 mm±1.2 mm
Panel vertical adjustment±2 mm±2 mm
Panel tilt adjustment–1.5 / +4 mm-1.5 / +4 mm
Drawer front-back adjustment0–5 mm0–5 mm
